BACKGROUND
While describing these are being 'used', I am erring on the side of caution, these 7 segment displays were taken from our workshop spare parts drawers but I am unsure if they were used or not - to be 'safe' I will assume these are used (in which case they would have been extractions from sockets, no solder has ever touched these leads!)
These are the basic 7 (with the right hand decimal point) segment displays with no associated driver electronics but the light intensity is much higher than "normal"
SIEMENS - 7 Segment (With Decimal Point) LED Display
Made in Germany
Type: HD 1133 O
Emission colour: RED
High brightness version, 4000mcd being typical ('normal' LED displays are typically around 500mcd)

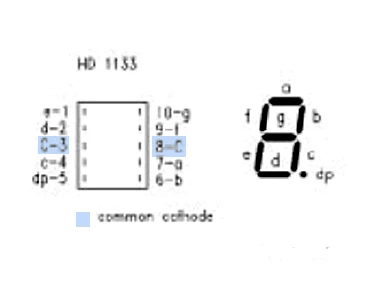

5 pin x 2 row package
Pin 1 is the furthermost to the left when looking at the side with the identification printing.
TESTING:
Whether NEW or USED, I make it a point to test each component (where possible) for full functionality ...
A bit fiddly but I connected all segments to a test 2.4V supply, pins 3 & 8 being the cathodes (-)
All display segments lit up as they should and the light intensity was the same across all segments and the decimal place dot.
I can absolutely confirm that these displays are BRIGHT with the segments being easily visible in sunlight.
COSMETIC CONDITION:
Clean
All pins look to be fine, perhaps just slightly dulled but I had no issues when I was undertaking the testing above.
NO physical damage to any of the LED modules
I have now placed each module onto a bed of styrofoam and then within a sealed, clear plastic packet.
