Ex workshop spare parts and small manufacturing stock
ALL components have been sourced through reputable local distributors such as RS Electronics, Farnell, WES and Rockby (Victoria)
LORIN ELECTRONICS (UK) - Rotary Switch
Made in United Kingdom (LORIN UK stamped into the switch body) - LORIN does NOT outsource it's switch production!
CK Series
Type: 12 position configurable (stop ring included)
Action: 3 pole x 4 Way

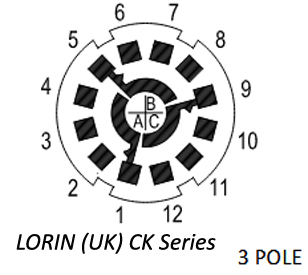

Here is a diagram of the switch action, from Lorin's datasheets
As this switch action is position configurable, it is easy to change this to a 2, 3 or 4 way switch, all with 3 poles. Perhaps I am missing something (in my thinking) but I cannot see any point in setting this as an 8 position switch (for example) because the switching sequence is simply repeated every 4 positions of rotation. Changing the switch positions is a snap, just lift and rotate the stop ring to the number of positions you require, that's it! I have the stop ring set for 4 positions at the moment.
I have confirmed this is a BBM type, break before make.
Solder tag terminations
Solder tag terminations and the switch wipers are all Silver plated.
10mm mounting hole required (has a locking pin on the body too)
Black polymide D shaft is 6.35mm OD x 30.5mm length
The switch has clearly marked (stamped into the body) position numbers on both sides, it is very easy to locate positioning of the switch. The common connections for each pole are also clearly marked (A,B & C)
Switching lifecycle (typical) greater than 10,000 operations
The switch is completely sealed
Switch body 26mm diameter x 11mm deep
Further technical and physical data is readily available online, directly from the LORIN website in UK
COSMETIC CONDITION:
NEW Old Stock
Clean and undamaged physically
This switch is now packed back into a sealed clear plastic packet, awaiting "a purpose in life"
